FULL AIR SUSPENSION:
VB-FULLAIR FRONT AXLE
Full air suspension is an automatic, adjustable solution to a suspension problem where the existing leaf or coil spring suspension is replaced by a full air suspension system. This system includes air springs, shock absorbers, height sensors, a compressor and an electronic control unit (VB-ASCU).
The air suspension system filters out unevenness in the road surface, improving ride comfort.
While driving, the vehicle will constantly remain at the ride height set by VB-Airsuspension during installation.
The standard ride height is determined during the development of the air suspension and is fixed.
The ride height is the ideal height for comfort and stability. The driveability and stability of the vehicle are improved, which in turn increases safety. When the vehicle is at a standstill (in some cases with the handbrake on), the access/loading platform height can be increased and decreased to comfortably enter and exit the vehicle and for goods to be conveniently loaded and unloaded.
VB-FULLAIR 2C FRONT AXLE
VB-FullAir 2C is a complete air suspension system on the front axle of the vehicle. 2C or 2-Corner indicates that two height sensors are fitted. The VB-FullAir 2C system comes with one of the remote controls shown below. You can use our deluxe remote control (VB-Remote control) to easily control the various functions of the system. VB-FullAir 2C for the front axle is only available for certain makes and types.
VB-FullAir 2C Remote
standard version
Memory function
Stored height is activated.
<0 km/h
Manual control
To vary the loading/unloading height.
<0 km/h
VB-FullAir 2C Remote
Motorhome version
Ferry
The front is lowered to the maximum level to facilitate driving the vehicle onto a ferry deck.
Approx. <30 km/h
Cargo space
The front is raised to the maximum level to make it easy to load and unload the vehicle at the rear.
<0 km/h
Manual control
To vary the loading/unloading height.
<0 km/h
VB-FULLAIR 2C IS OFTEN FITTED ON THE FRONT AXLE TO MEET THE FOLLOWING REQUIREMENTS. IT:
- Increases the ride height
- Minimises sagging
- Reduces vehicle roll
- Improves suspension comfort
- Improves driving characteristics
- Increases safety
- Improves stability
- Control options

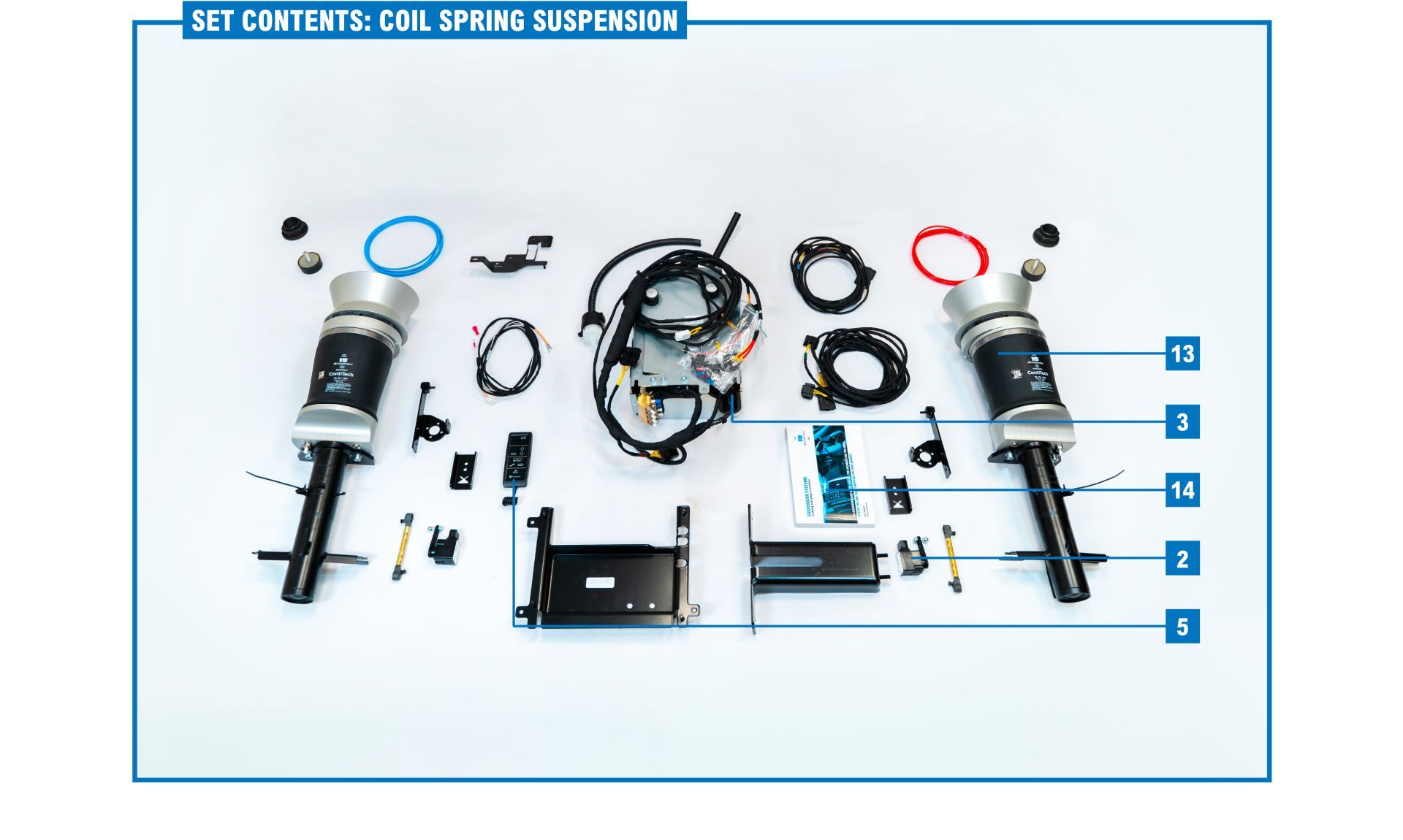

VB-FULLAIR 2C SYSTEMS CONTENTS: |
COIL SPRING SUSPENSION |
|---|---|
Height sensors
|
|
VB-ASCU (control unit)
|
|
Remote control
|
|
McPherson front struts with air springs
|
|
User manual
|
|
Shock absorbers (in most cases)
|
|
|
Fasteners
|
|
|
Fitting instructions
|
|
|
Approval documentation (TÜV/ABE)
|
BENEFITS OF VB-FULLAIR
- Control options
- Constant ride height
- Improved comfort
- Optimum driveability
- Increased stability
- Comfortable ride for passengers
- Improved protection for fragile goods
- Less wear on tyres/brakes
AVAILABLE OPTIONS FOR VB-FULLAIR 2C
EMERGENCY VALVE KIT
The VB-FullAir system can be pressurised by means of filling valves in the event of a possible electronic failure or a defect in the compressor. The vehicle can be brought up to driving height again by means of an external air supply so that the journey can be continued.
'EXTRA TIME' MODULE
This module in VB-ASCU ensures that the air suspension remains active for one hour after the ignition is switched off. The vehicle's ignition can therefore be switched off, while all the functions of the air suspension remain active.
ADDITIONAL SWITCH
This is an additional switch that allows the high/low function of the air suspension to be controlled from a different location in the vehicle, for example at the rear door. The advantage of this is that the driver does not have to walk to the cab to operate the air suspension.
WHEN SHOULD YOU CHOOSE VB-FULLAIR 2C?
Our easy-to-use Product Finder will help you select the right suspension or air suspension system for your needs. The Product Finder performs a search for your vehicle and will show the best solution for your specific make and model. That way, you can be sure the relevant solution is actually available for your vehicle.
WANT TO GET VB-FULLAIR 2C FOR YOUR VEHICLE?
Our partner network has been structured such that you will always be able to find a VB-Partner in your region. Our VB-Partners can assist you with a quotation, fitting and/or any repair/maintenance work needed. Our VB-Partners have undergone specialist training in all aspects of fitting our systems and will be able to advise you appropriately.
Want to find out who is the nearest VB-Partner in your region?
OTHER FULL AIR SUSPENSION SYSTEMS
WANT TO READ MORE?
We have a specific brochure available for the 'full air suspension' product group. To read through everything again at your leisure, click on the button below to download the VB-FullAir brochure.
