FULL AIR SUSPENSION: VB-FULLAIR 4C
Full air suspension is an automatic, adjustable solution to a suspension problem where the existing leaf or coil spring suspension is replaced by a full air suspension system. This system includes air springs, shock absorbers, height sensors, a compressor and an electronic control unit (VB-ASCU).
The air suspension system filters out unevenness in the road surface, improving ride comfort.
While driving, the vehicle will constantly remain at the ride height set by VB-Airsuspension during installation.
The standard ride height is determined during the development of the air suspension and is fixed.
The ride height is the ideal height for comfort and stability. The driveability and stability of the vehicle are improved, which in turn increases safety. When the vehicle is at a standstill (in some cases with the handbrake on), the access/loading platform height can be increased and decreased to comfortably enter and exit the vehicle and for goods to be conveniently loaded and unloaded.
VB-FULLAIR 4C
VB-FullAir 4C is a complete air suspension system on the front and rear axle of the vehicle. 4C or 4-Corner indicates that four height sensors are fitted: two on the front axle and two on the rear axle. The VB-FullAir 4C system comes with one of the remote controls below. You can use our deluxe remote control (VB-Remote control) to easily control all the functions of the system.
VB-FullAir 4C Remote
FULL OPTION version
AutoLevel
Includes a digital levelling function which can set your vehicle level (as far as the spring travel permits)
<0 km/h
Sport
Lower the level of the vehicle by around 30 mm for better handling and firm chassis adjustment.
>0 km/h
Off Road
Increase of around 30 mm for greater ground clearance.
Approx. <30 km/h
Car Park
Lower the vehicle to virtually the maximum level to make it easier to get in and out. You can also use this function (depending on the original vehicle height) to reduce the ride height in order to enter a car park with a low roof or to drive under a gateway.
Approx. <30 km/h
Memory function
Stored height is activated.
<0 km/h
Manual control
To vary the loading/unloading height.
<0 km/h
VB-FullAir 4C Remote
Motorhome version
Autolevel
Includes a digital levelling function which can set your vehicle level (as far as the spring travel permits)
<0 km/h
Off Road
Increase of around 30 mm for greater ground clearance.
Approx. <30 km/h
Parking
Lower the vehicle to virtually the maximum level to make it easier to get in and out. You can also use this function (depending on the original vehicle height) to reduce the ride height in order to enter a car park with a low roof or to drive under a gateway.
Approx <30 km/h
Ferry
The rear is raised to the maximum level to facilitate driving the vehicle onto a ferry or similar.
Approx. <30 km/h
Water discharge
Tilts the vehicle to the side with the water discharge to allow the wastewater tank and the toilet tank to be fully emptied.
Approx. <0 km/h
Cargo space
The front axle is automatically raised and the rear is lowered to the maximum level to make it easy to load and unload the vehicle at the back.
<0 km/h
Manual control
To vary the loading/unloading height.
<0 km/h
VB-FULLAIR 4C IS OFTEN FITTED TO MEET THE FOLLOWING REQUIREMENTS. IT:
- Increases the ride height
- Minimises sagging
- Reduces vehicle roll
- Improves suspension comfort
- Improves driving characteristics
- Increases safety
- Improves stability
- Control options

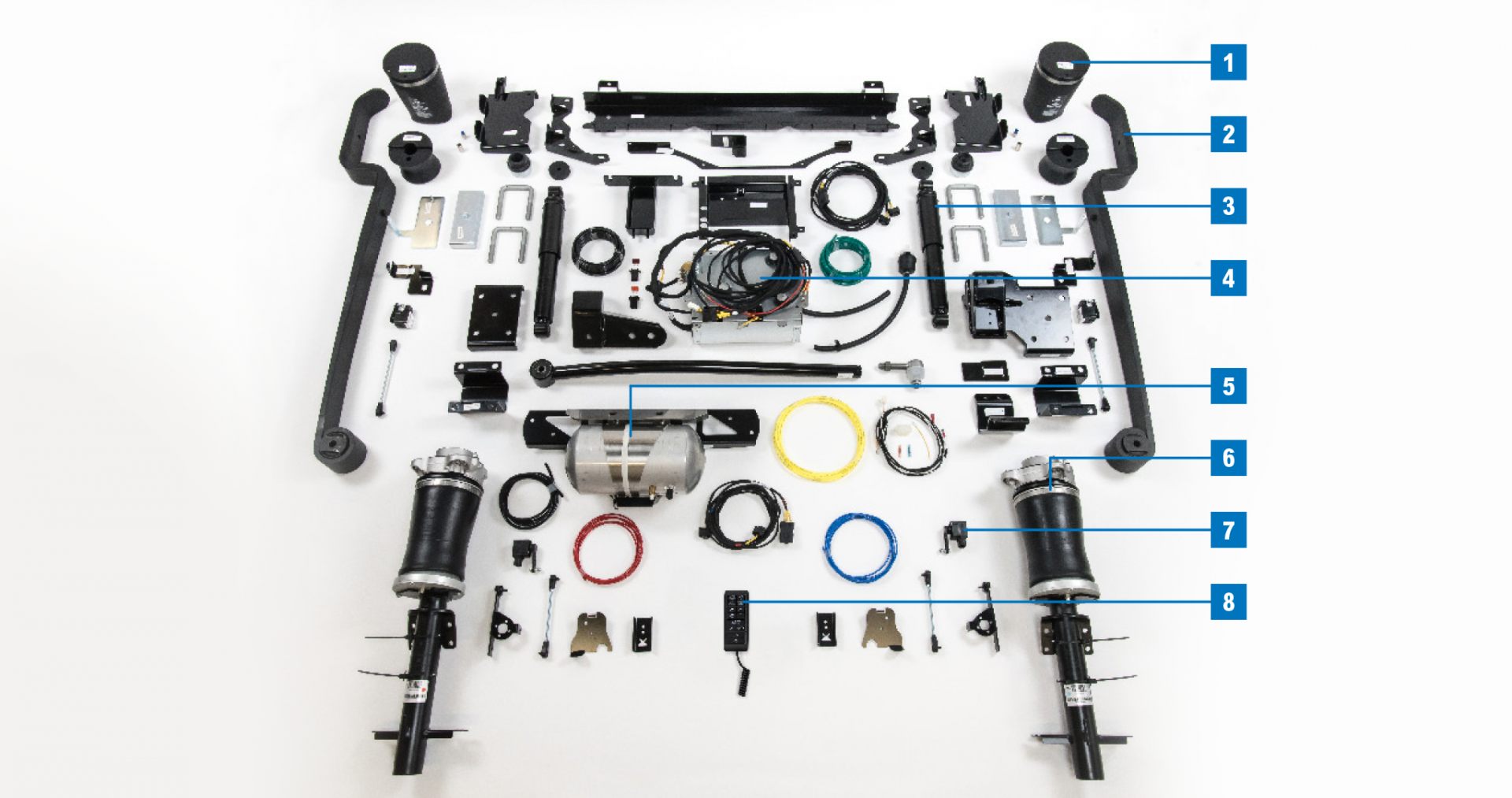

VB-FULLAIR 4C SYSTEMS CONTENT: |
LEAF SUSPENSION | COIL SPRING SUSPENSION | TORSION BAR SUSPENSION |
|---|---|---|---|
Air springs
|
|||
Height sensors
|
|||
VB-ASCU – control unit
|
|||
Main springs
|
|||
Remote control
|
|||
Shock absorbers – in most cases
|
|||
Compressor
|
|||
Air tank
|
|||
Suspension arms
|
|||
Torsion bars
|
|||
AIr spring support brackets
|
|||
McPherson front struts with air springs
|
|||
User manual
|
|||
Fasteners
|
|||
|
Fitting instructions
|
|||
|
Approval documentation (TÜV/ABE)
|
BENEFITS OF VB-FULLAIR
- Control options
- Constant ride height
- Improved comfort
- Optimum driveability
- Increased stability
- Comfortable ride for passengers
- Improved protection for fragile goods
- Less wear on tyres/brakes
AVAILABLE OPTIONS FOR VB-FULLAIR 4C
EMERGENCY VALVE KIT
The VB-FullAir system can be pressurised by means of filling valves in the event of a possible electronic failure or a defect in the compressor. The vehicle can be brought up to driving height again by means of an external air supply so that the journey can be continued.
'EXTRA TIME' MODULE
This module in VB-ASCU ensures that the air suspension remains active for one hour after the ignition is switched off. The vehicle's ignition can therefore be switched off, while all the functions of the air suspension remain active.
ADDITIONAL SWITCH
This is an additional switch that allows the high/low function of the air suspension to be controlled from a different location in the vehicle, for example at the rear door. The advantage of this is that the driver does not have to walk to the cab to operate the air suspension.
VB-AUTOLEVEL
This module allows the vehicle to be positioned horizontally, even when the vehicle is standing on uneven ground. At the push of a button, the vehicle can be levelled quickly and smoothly. Unevenness of up to more than 10 cm can be corrected (depending on the type of vehicle).
WHEN SHOULD YOU CHOOSE VB-FULLAIR 4C?
Our easy-to-use Product Finder will help you select the right suspension or air suspension system for your needs. The Product Finder performs a search for your vehicle and will show the best solution for your specific make and model. That way, you can be sure the relevant solution is actually available for your vehicle.
WANT TO GET VB-FULLAIR 4C FOR YOUR VEHICLE?
Our partner network has been structured such that you will always be able to find a VB-Partner in your region. Our VB-Partners can assist you with a quotation, fitting and/or any repair/maintenance work needed. Our VB-Partners have undergone specialist training in all aspects of fitting our systems and will be able to advise you appropriately.
Want to find out who is the nearest VB-Partner in your region?
OTHER FULL AIR SUSPENSION SYSTEMS
WANT TO READ MORE?
We have a specific brochure available for the 'full air suspension' product group. To read through everything again at your leisure, click on the button below to download the VB-FullAir brochure.
